Triple Swing Frame with Net Frame and Extension : TFNX

Description

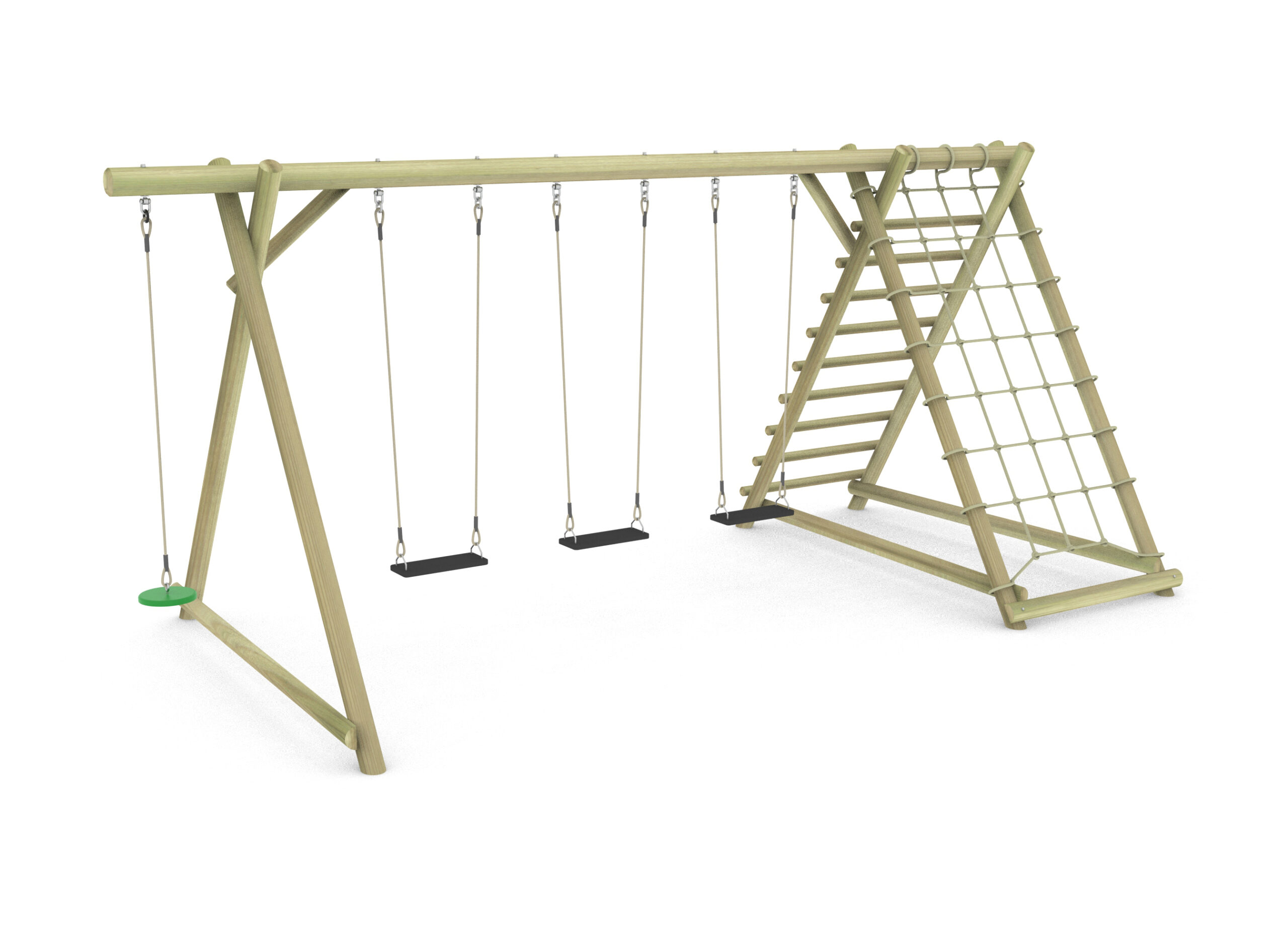

The Triple Swing Frame with Net Frame and Extension is a triple swing frame with a ladder and net frame attached on one side and has the top pole extended on the other side.

It comes with three sets of double swing points and one single swing point on the extension to allow for swings to be chosen at the appropriate level required to suit the age, size and ability of the child using it. The swing seats are purchased separately.

The extension only accommodates swing seats with single swing points. Choose from the following;

No 10 Vertical Tyre

No 25 Climbing Rope

No 26-4 Climbing Rope Ladder

No 44 Monkey Button

No 45 Twizzler

Code SHS Hammock Seat

Code PMPY Push Me Pull You

Further information on choosing swing seats for different types of swing points for the Triple Swing Frame with Net Frame and Extension is available here.

Information on how to attach the net to the net frame can be found here.

The frame is extremely robust and does not require ground anchors.

As part of our commitment to the environment, all timbers are from sustainably-managed forests. We use machine-rounded, dense, Northern European softwoods that have been pressure-treated and waxed for durability.

This is a popular product as it combines elements of swinging and climbing all in one and is suited for larger gardens where more space is available

We recommend one grass safety under each swing to minimise ground erosion.

Specification

Six 10cm diameter legs support 12cm diameter top swing pole.

Top pole secured with 17mm timber bolts and 13mm timber bolts are used at all other points, - located into pre-drilled recessed holes.

2.5m spread between the 10cm diameter legs – very stable.

8cm diagonal bracing bars have 2 fixing points at end of the bar

Hemp rope net 1.2m wide x 3.0m and ladder 1.0m wide

The play frame can be changed to have either 2 nets or 2 ladder sets.

All swing pivot points are fixed through 12cm top swing pole, locked with twin locking nuts.

All steps are 6cm diameter and positioned 28cm apart and have red safety bushes between the rungs and ladder sides, (frame legs)

All the timbers have been pressure treated and impregnated with wax, providing a more repellent surface so reducing water absorption and delaying future rotting of the timber.

Due to the size of the A-frame legs they are able to partially compensate for uneven ground or slight slopes

Assembled size: 5.0m long  x 2.5mwide x 2.6m high

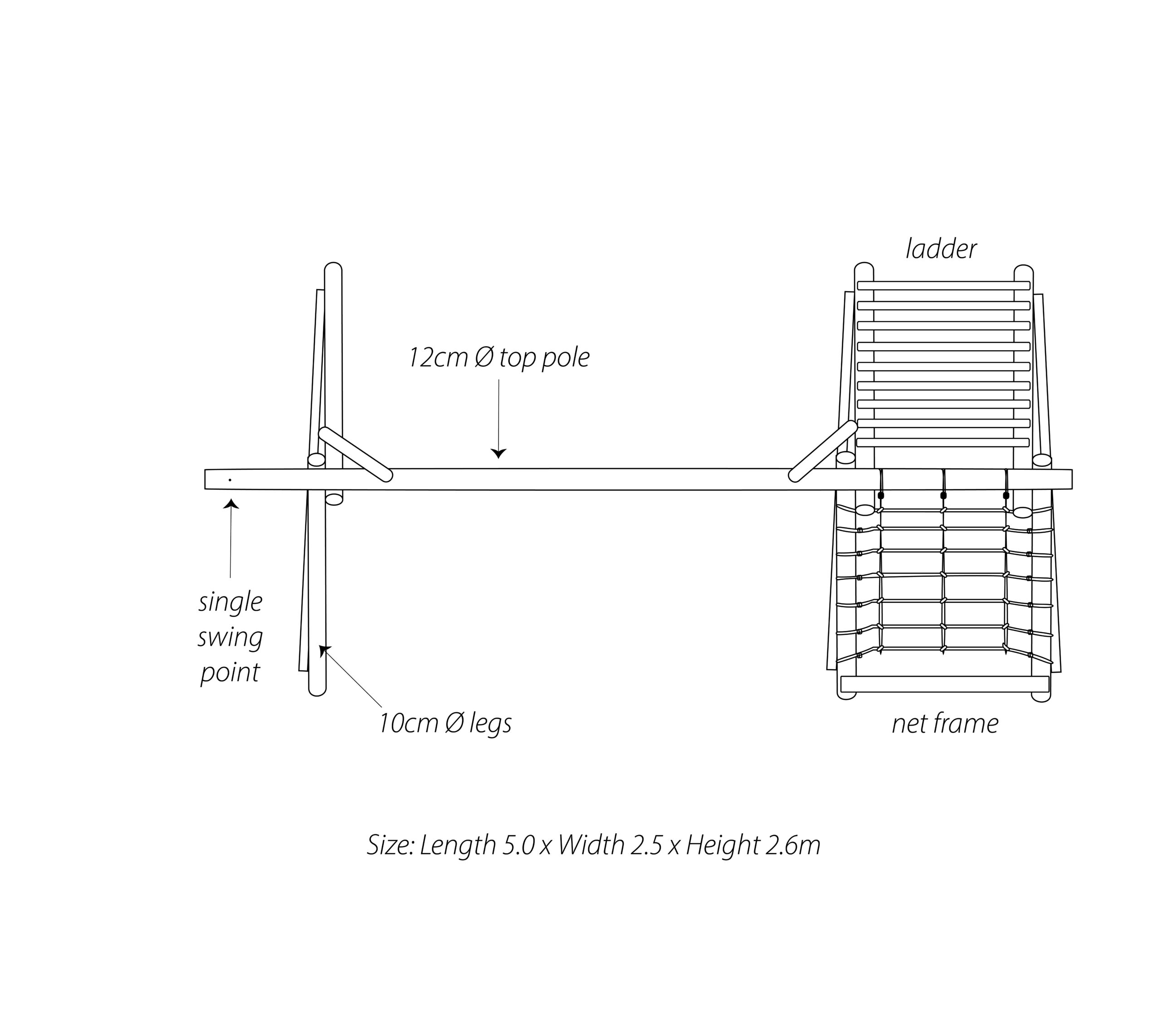

Dimensions

Length: 5.0m | Width: 2.5m | Height: 2.6m

We recommend a clearance of 1.5m around the product and a 2.0m clearance in front of and behind the swings.
