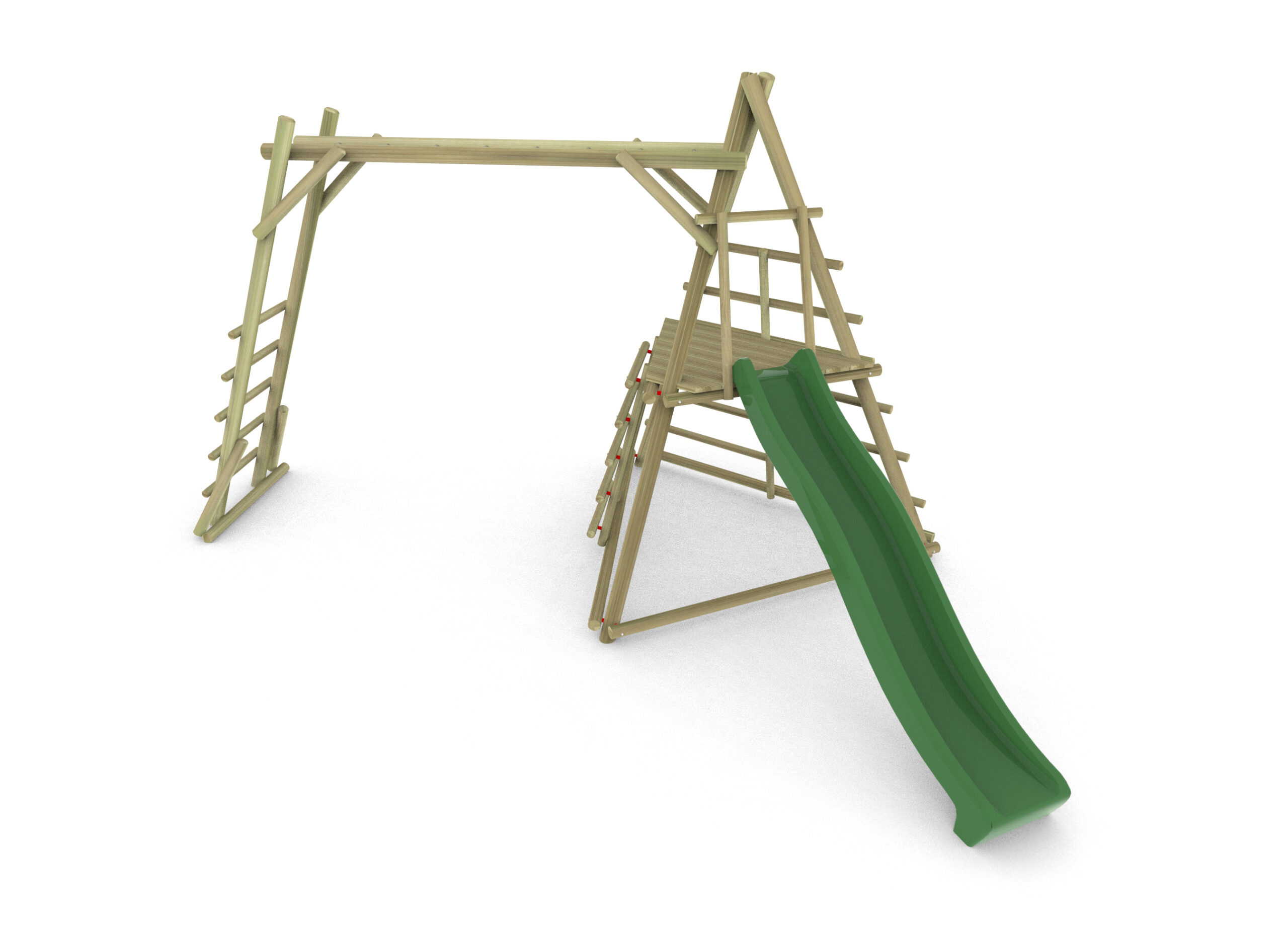

Pyramid Monkey Frame : PMF


The Pyramid Monkey Frame is a Pyramid Slide Frame with a Monkey Bar Ladder extension.

The monkey bar ladder element is challenging and develops upper body strength – the high-density polyethylene slide element offers a fun exit point.

Smaller or less able children are still able to access the pyramid and slide element independently hence this product caters well for a range of children of mixed ability.

The Tripod shape is extremely strong and robust and requires no ground anchors due to it being very heavy. Three 3.5m x 10cm diameter timber legs with 8cm base frames form the main tripod structure.

The timber used is Northern Scandinavian Pine and the machine-rounded timbers are slow-grown Norway Spruce.

As part of our commitment to the environment, all timbers are from sustainably-managed forests.

All our timbers are pressure treated with non-arsenic based preservative salts, then impregnated with wax.

The Monkey Bar Ladder has stainless steel rungs.

To prevent ground erosion or to provide a more giving surface simply lay our Grass Safety Mats at strategic points under or around the equipment. The grass grows through the mats and can be cut as normal requiring minimum maintenance and keeping the natural look of the garden. The mats will also help keep kids a little safer. Children trip and fall all the time – it is part of learning and growing up – however it’s nice to know that some of the falls that might have led to a more serious injury might just end up being a bump or a bruise and the child can carry on playing.

The quality Camouflage Net is a great accessory for this product to create a secret den underneath the pyramid shaped tower. See image gallery to see the camouflage net being used. Other fun accessories are the periscope, steering wheel and telescope.

If required – it is possible to add a net frame or ramp to this product. Please email for more information.

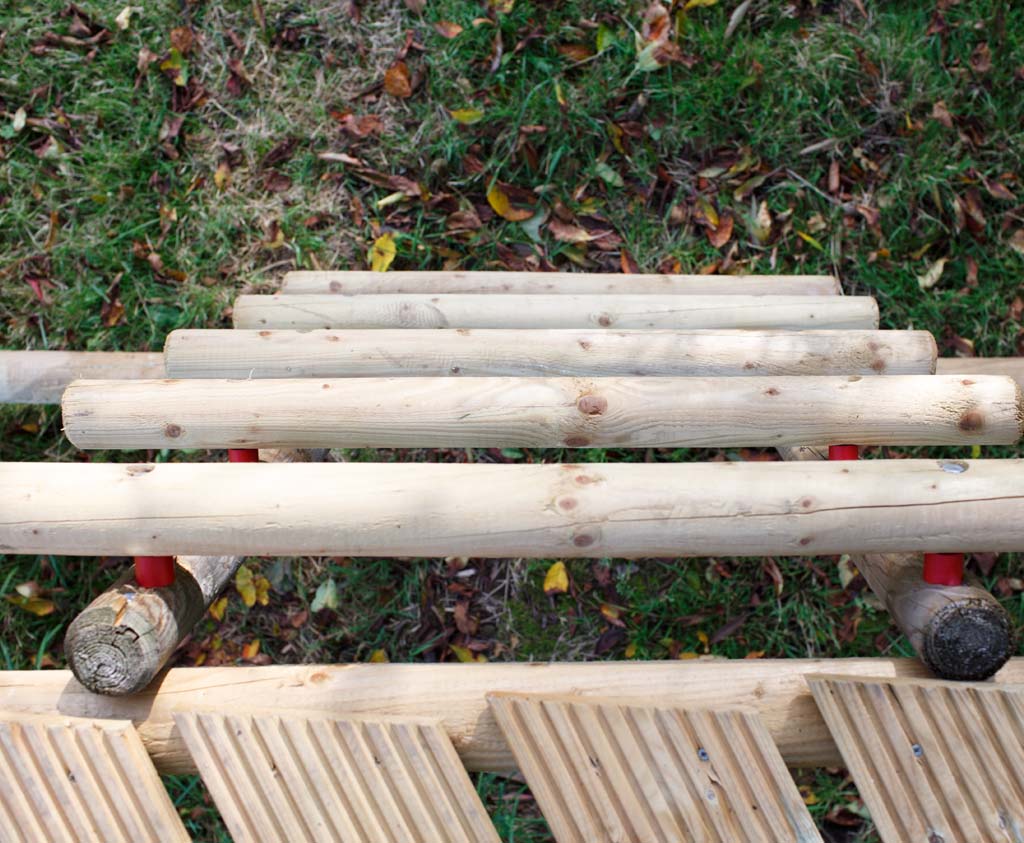

all steps are 6cm diameter timbers positioned 30cm apart and have red safety bushes between the rungs and ladder sides

monkey bars are secured into position at each end of the 3.0m ladder, to the top of the pyramid frame frame and supported by a set of 10cm diameter timber legs with a 5 steps that provide access to the hand rungs

slide is 3.0m long and made of high-density polyethylene

stainless steel monkey ladder rungs

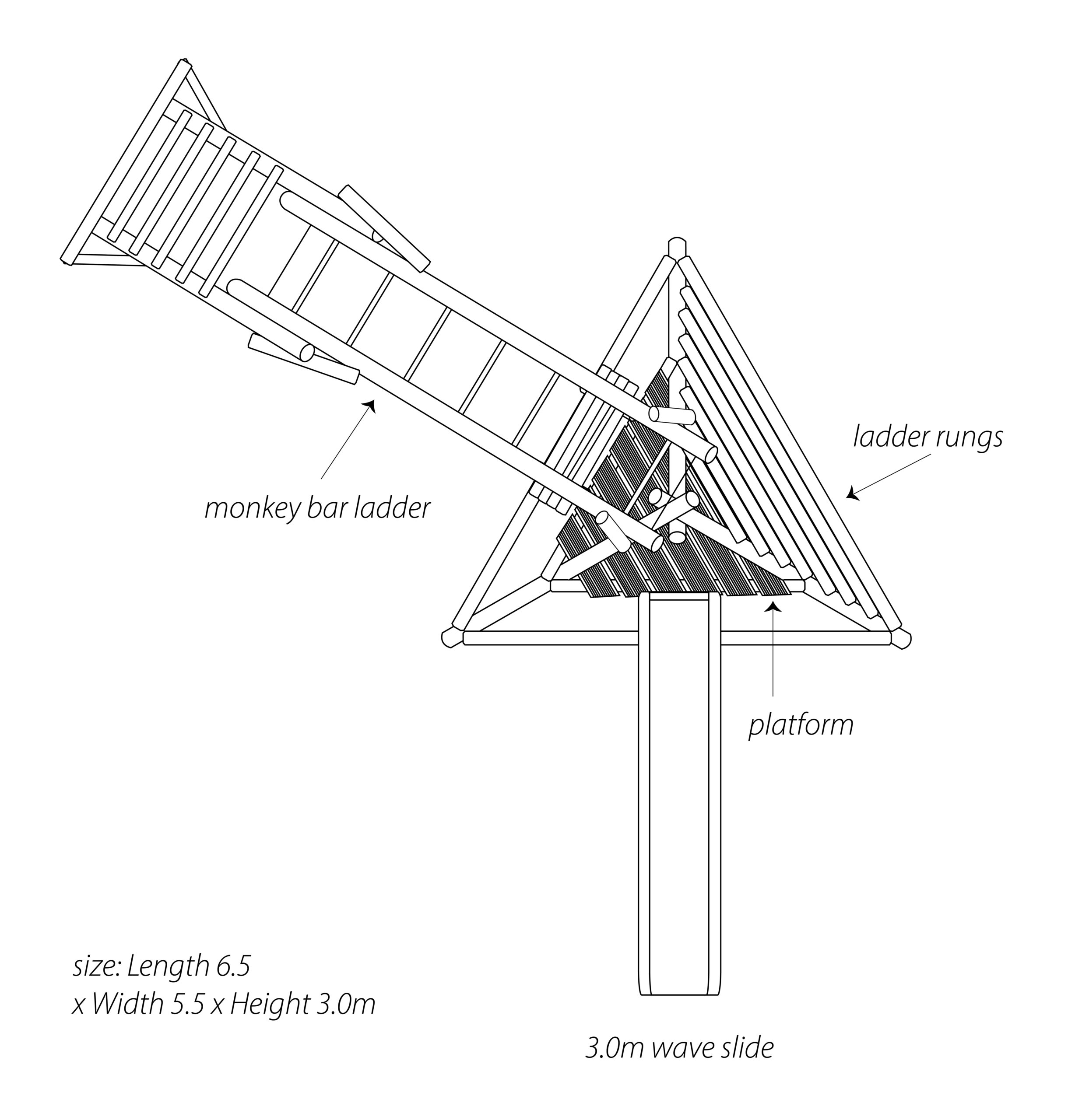

Length: 6.5m | Width: 5.5m | Height: 3.0m

Platform height: 1.50m above the ground | Length of Monkey Ladder ~3.0m


Please note: dimensions are approximate and for guidance only - sizes can vary depending on the angle of the Monkey Bar Ladder Extension and any sloping ground.
