Inclusive Wheelchair Swing : MT-IWS(C)

Description

The Inclusive Wheelchair Swing has been designed to enable wheelchair users to safely enjoy the freedom of swinging without having to leave their wheelchair.The platform is easily accessed facilitating integrated and independent play.
Constructed from powder coated galvanised stainless steel.

The freefall height of this product is 1.3m.

TUV tested to safely take a maximum weight of 2000kg.

The Inclusive Wheelchair Swing has the following safety features:

A lock to prevent the use of the swing in an uncontrolled manner by unauthorized persons.

A skid-free access ramp.

Damping cylinder protecting against excessive movement of the swing

Hoop blocking the ramp opening while swinging

Bumpers protecting persons approaching the swing in the gondola’s movement area.

For more information on our Inclusive Wheelchair Swing and all our swing park items email sales@caledoniaplay.com or call the office on 01577 840570.

We can also give detailed information about the best safety surfacing options for your play area including installation costs.





Specification

powder coated galvanised stainless steel

TUV tested to 2000kg

Gondola has 2 16mm ropes with plastic endings to move the swing

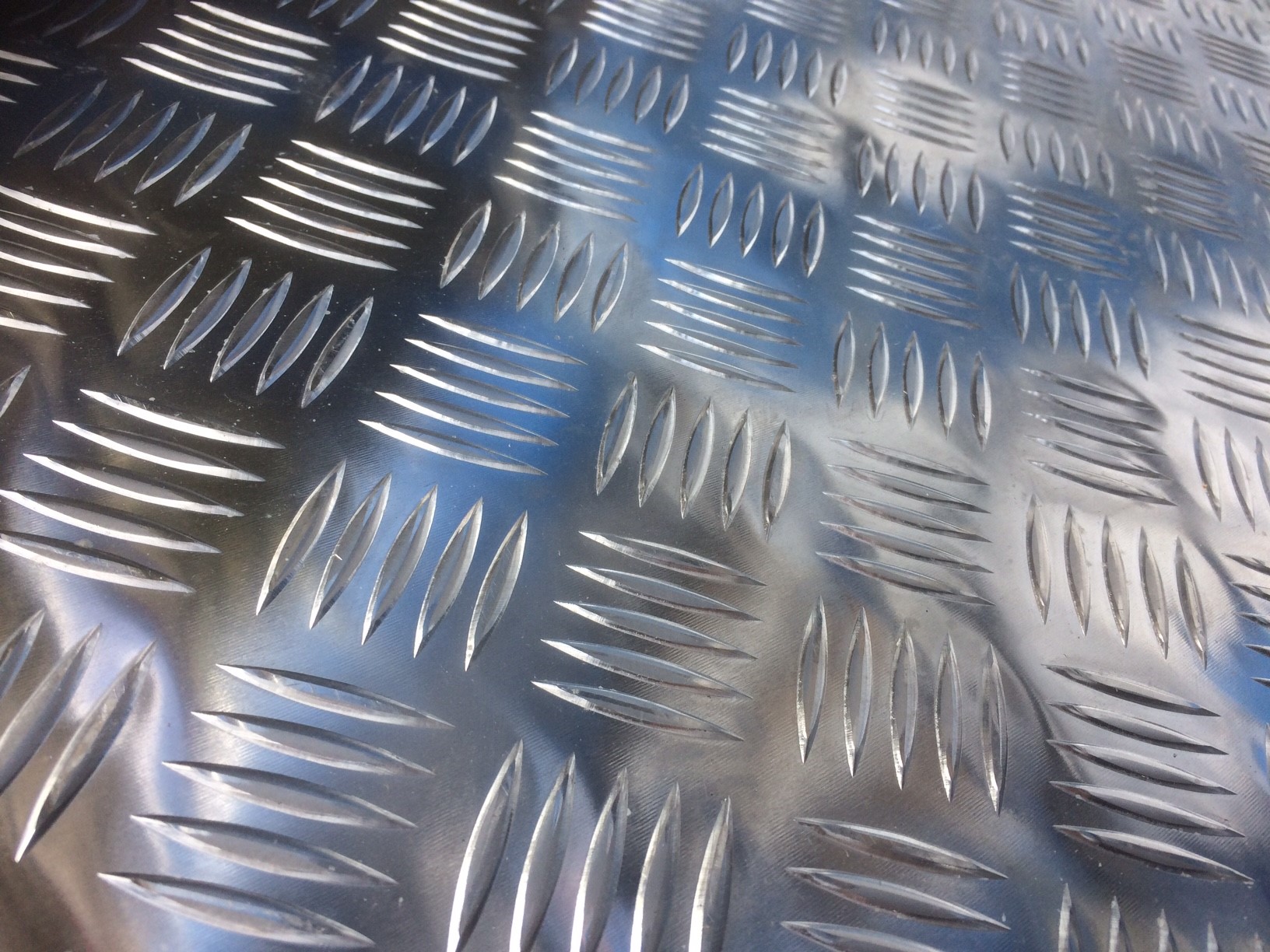

Aluminium plate 300 mm entrance ramp/platform

3 shock absorbers

2 gas springs



Dimensions

Size: 2.87 x 1.89 m
Area: 7.0 x 5.0 m
Height: 2.61 m

Safety area: 7.0m x 5.0m

Free fall height: 1.13m



We are unable to offer online ordering of this product.

Optional Accessories
